C7 Z06 Magnuson TVS2650R | Stage 1 (Street)

The factory blower comes off. A Magnuson TVS2650R Magnum DI goes on in its place, spun by a 90mm pulley, backed by ported LT4 heads, a VR cam kit, long tubes, and the fuel system to keep up with it. This is the street build: pump gas, stock drivability, and a supercharger that still has room left in it.

Estimated Power: 850 to 880 rwhp. Calibrated with HP Tuners and VR RTD.

Fitment: 2015 to 2019 C7 Z06 (LT4), dry sump only.

Fuel: 93 octane pump gas.

Required with this package

The drivetrain has to hold what the engine is making. One of these applies to every car:

• M7 (manual): clutch upgrade. We use the Monster S Series Triple Disc Clutch, rated to 1,150 rwhp with stock pedal effort and factory engagement feel.
• A8 (automatic): C7 TCM tuning +$650

This is not optional. The factory clutch will not hold this power, and the factory transmission calibration will not shift it.

What's included

Supercharger

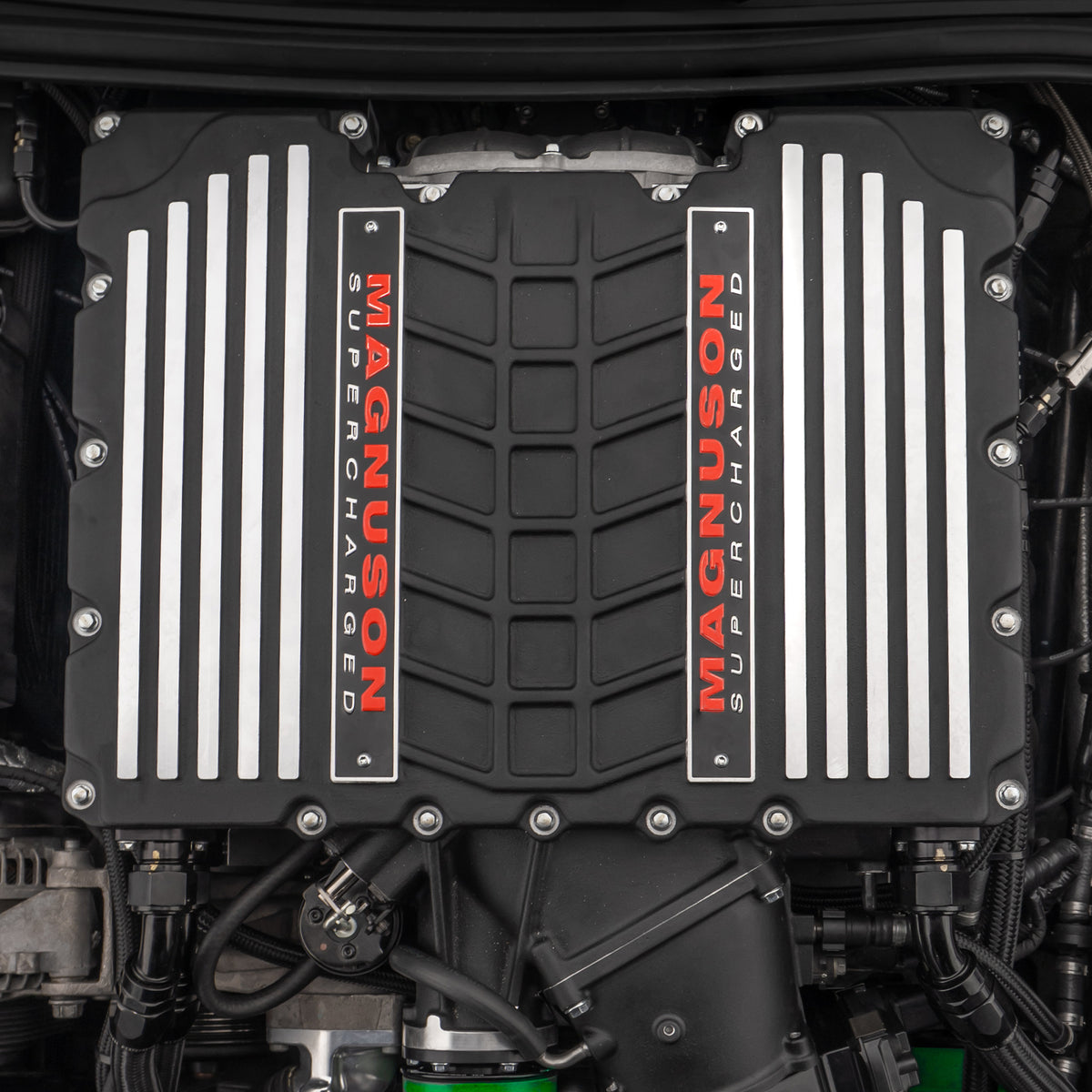

Magnuson TVS2650R Magnum DI Supercharger System (dry sump, 90mm pulley)
Magnuson 103mm Inlet
Vengeance Racing 2650 Install Kit for C7 (AN lines and fittings for HX plumbing, high flow billet inlets)

Induction & Airflow
RotoFab Big Gulp Cold Air Intake
Nick Williams 103mm Gen V LT Throttle Body (Black)

Cylinder Heads
Vengeance Racing CNC Ported LT4 Cylinder Heads, built by LME (core exchange)
CNC ported intake, exhaust, and chambers
GM 2.125" Titanium Intake Valves
REV 1.600" Severe Duty One-Piece Stainless Exhaust Valves
CHE Precision Manganese Bronze Valve Guides
Polished Dual Valve Spring Kit set up for .660" lift
Valve guide clearance measured and adjusted per application

VR Cam Kit
Vengeance Racing Custom Camshaft (38% fuel lobe upgrade)
Vengeance Racing 3/8" Hardened Pushrods
IWIS Pro Series Seamless Roller Timing Chain
CHE High Performance Trunnion Kit
LME Billet VVT Delete Front Cover with Billet Guide
Johnson 2110R Drop-In Hydraulic Lifters
GM Lifter Trays
GM Crank Bolt
GM MLS 6.2L Head Gaskets
GM LT Exhaust Gaskets
DOD Delete Plug Kit
ARP Cylinder Head Bolt Kit
GM LS Front Cover Seal

Valve Covers
Vengeance Racing CNC Billet Valve Covers (Gen V LT, stainless hardware with O-ring washers, coil relocation plug wires included)

Oil System
Katech Gen V LT High-Capacity Dry Sump Oil Pump (high capacity scavenge and pressure)

Pulleys & Drive
ATI Dry Sump Balancer Kit (crankshaft bolt included)
DSX Tuning 9.45" Lower Pulley (bolts included)
Gates Green HD 8-Rib Supercharger Belt

Exhaust
Kooks 2" Stainless Long Tube Headers with 3" X-Pipe and GREEN Catalytic Converters
Vengeance Racing Header Bolt Kit
Pricing is based on GESI / Kooks H.O. GREEN cats. Other options available.

Fuel System
DSX Tuning Auxiliary Fuel Pump Kit (320lph)

Cooling
Vengeance Racing Heat Exchanger Upgrade for C7 Z06 (-12AN)
Cordes Performance C7 Z06 Expansion Tank Kit
AMP Billet Thermostat Housing (160°)
AN lines and fittings for plumbing

Crankcase
Mighty Mouse Wild Catch Can System (AN lines and fittings included)

Ignition
NGK LTR7IX Iridium Spark Plug Set

What the Full Package covers

The Full Package is not parts plus labor. It is a complete, calibrated, running car handed back to you. On top of every part listed above, the installed price includes:

• Professional installation of all listed hardware
• Cylinder head core exchange handled end to end
• All required fluids (engine oil, filter, coolant) and used-fluid recycling
• Complete ECU calibration, calibrated with HP Tuners and VR RTD
• Baseline and final dyno testing, with a before and after printout
• All HP Tuners licensing and ECU credits
• Full street and dyno tuning session
• 10 gallons of 93 octane fuel
• Complete four-wheel alignment
• Shop supplies and interior and exterior protection throughout the build
• Vengeance Racing limited warranty
• Wash and vacuum before delivery

Parts Only ships you the hardware. The Full Package is that same hardware installed, tuned, and running before it leaves the shop.

Parts Only (shipped)

Parts Only ships the complete hardware kit to your door. One item on this package is send-in: the cylinder heads are a core exchange with our head partner, and freight both directions is already included in the price. Installation, tuning, fluids, and calibration are not included. Shipping on your hardware kit is calculated at checkout.

Available add-ons

• 2017+ TCM licensing credits (required for 2017 and newer vehicles): +$100
• Kong Performance CNC porting of the 2650 supercharger and snout (contact for pricing)
• DSX Billet Supercharger Lid (contact for pricing)
• DSX In-Tank Fuel Module, replaces the auxiliary system (contact for pricing)
• VR cooling package, suspension, wheel and tire packages, road-force balancing, PPF, ceramic coating, powder coating

A deposit holds your build slot

$500 deposit at checkout. Balance due at drop-off. Questions before booking? Contact us.
